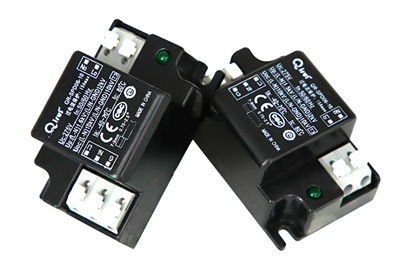

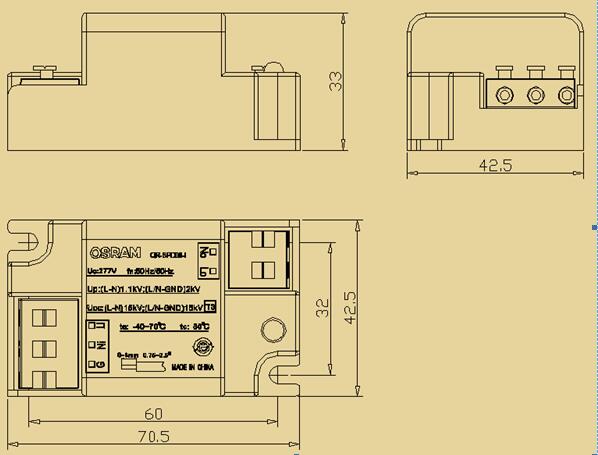

15kV IP20浪涌保护器QR-SPD06-15
IP20 15KV浪涌保护器, CQC, TUV, CE
IP20等级防水
Uoc: 15kV
TUV认证（IEC61643-11）
CQC认证
CE认证
适用于ClassI和ClassII 灯具
|
绝缘等级 Insulation Class |
应用领域 Application field |
|||||
|
|
TN |
TNC |
TNS |
TNCS |
TT |
IT |
|
一类灯具 Class I |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
二类灯具 Class II |
✓ |
✓ |
✓ |
✓ |
✓ |
|
电性能参数 Electrical specifications
|
参数规格 Specifications |
参数代号Parameter |
参数值 Value |
单位 Unit |
测试环境 Condition |
|
认证机构 Certifications |
|
|
|
|
|
冲击类别 Classification |
|
Class III |
|
Acc. IEC61643-11 |
|
保护模式 Protection mode |
|
Diff. mode & Comm. mode |
|
|
|
最大持续工作电压 (L-N) Max. continuous operating voltage |
Uc (L-N) |
277 |
VAC |
50 … 60 Hz |
|
最大持续工作电压 (L-GND) Max. continuous operating voltage |
Uc (L-GND) |
277 |
VAC |
50 … 60 Hz |
|
最大持续工作电压 (N-GND) Max. continuous operating voltage |
Uc (N-GND) |
277 |
VAC |
50 … 60 Hz |
|
暂时过电压 Temporary overvoltage TOV |
UT |
1505 |
V |
HV system fault: 1200 V+305, at tt = 200 ms, TT （L-PE） |
|
暂时过电压 Temporary overvoltage TOV |
UT |
402.6 |
V |
LV system fault: 305 V x 1.32 at tt = 120 m, TT 、TN |
|
暂时过电压 Temporary overvoltage TOV |
UT |
528 |
V |
LV system fault: 305 V x √3 at tt = 5 s, TT 、TN |
|
电网类型 Power grids |
|
TN, TT, |
|
Incl. all TN varieties TN-C, TN-C-S, TN-S |
|
标称放电电流 (L-N) Nominal discharge current |
In (L-N) |
7.5 |
kA |
@ Uoc=15KV；internal resistance=2Ω |
|
标称放电电流 (L-GND) Nominal discharge current |
In (L-GND) |
7.5 |
kA |
@ Uoc=15KV；internal resistance=2Ω |
|
标称放电电流 (N-GND) Nominal discharge current |
In (N-GND) |
7.5 |
kA |
@ Uoc=15KV；internal resistance=2Ω |
|
最大电压保护水平 (L-N) Max. voltage protection level at In |
Up (L-N) |
1,5 |
kV |
|
|
最大电压保护水平 (L-GND) Max. voltage protection level at In |
Up (L-GND) |
2 |
kV |
@ Uoc=15KV；internal resistance=2Ω |
|
最大电压保护水平 (N-GND) Max. voltage protection level at In |
Up (N-GND) |
2 |
kV |
@ Uoc=15KV；internal resistance=2Ω |
|
开路电压 Open-circuit voltage |
Uoc |
15 |
kV |
|
|
后备保险丝 Backup fuse |
|
8 |
A |
max., gG fuse |
|
失效指示 End of life indication |
|
yes |
|
指示灯亮：正常工作Optical, light ON: SPD is functional. 指示灯灭：产品失效Light OFF: SPD has reached end-of-life |
|
最大对地漏电电流 Max earth leakage current at Uc |
|
50 |
µA |
Max. rms, to GND |
其他参数 Other specifications
|
参数规格 Specifications |
参数代号 Parameter |
参数值 Value |
单位 Unit |
测试环境 Condition |
|
抗冲击能力 Surge withstand capability |
|
1 |
strike |
max. at 10 kA |
|
|
30 |
strikes |
min. at 7.5 kA |
|
|
|
50 |
strikes |
min. at 5 kA |
|
|
额定电流 Nominal current |
|
4 |
A |
额定负载电流（50-60Hz） Rated load current at 50 … 60 Hz |
|
消耗功率 Power consumption |
|
1.1 |
W |
max. at Uc = 277VAC； Load current=4A |
|
适用灯具 Suitable for luminaires |
|
Class I、Class II |
|
绝缘等级按照 IEC60598 Insulation Class acc. IEC60598 |
电压保护水平 Protection levels Up
|
冲击电流 IC 8/20 μs |
差模 U2 Differential mode U2 |
共模 U1/U2 Common mode U1/U2 |
|
7.5kA |
≤1500 V |
≤2000 V / 1500 V |
|
|
|
|
使用和储藏环境 Environmental conditions
|
参数规格 Specificationitem |
参数值 Value |
单位 Unit |
测试环境 Condition |
|
环境温度 Ambienttemperature |
-40…70 |
°C |
|
|
外壳表面温度 Tcase-max. |
80 |
°C |
在温度测量点测量 MeasuredatTc-point |
|
储藏环境温度 Storagetemperature |
-40…85 |
°C |
|
|
相对湿度 Relativehumidity |
5…95 |
% |
不结露 Non-condensing |
|
室外灯适用 Suitableforoutdoorluminaires |
Yes |
|
仅室内 Built-inonly |
寿命 Lifetime
|
参数规格 Specificationitem |
参数值 Value |
单位 Unit |
测试环境 Condition |
|
寿命 Lifetime |
100,000 |
hours |
最大外壳温度下90%产品正常工作 Measured@Tcase-maxwithmin90%survival |
